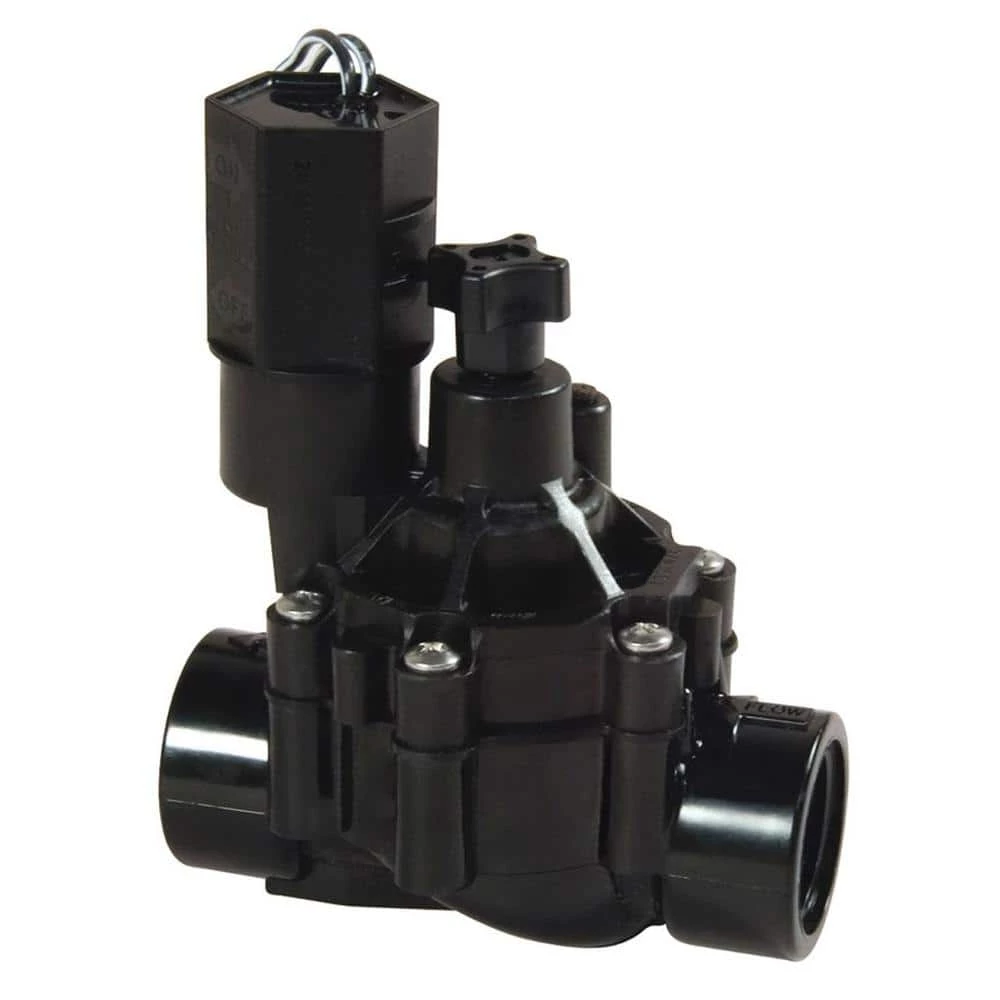

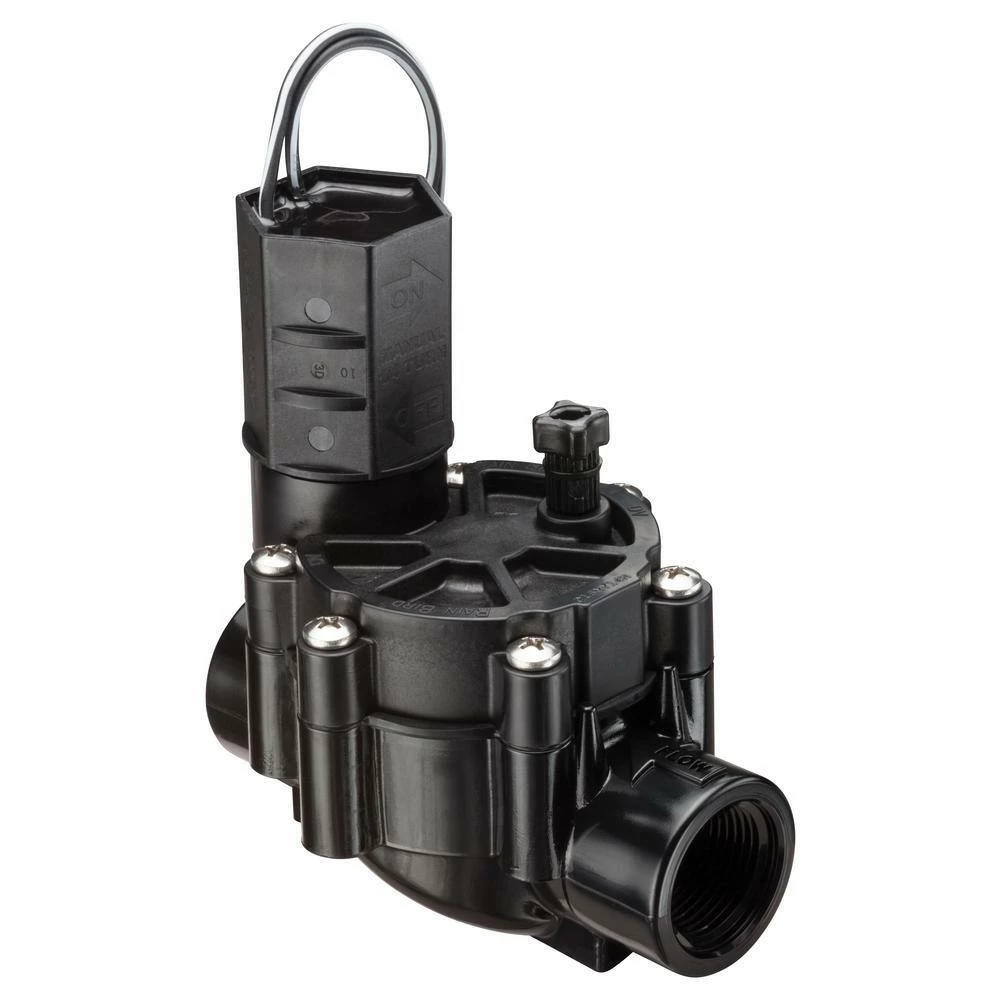

Rain Bird 3/4 in. In-Line Sprinkler Valve with Flow Control

This residential and light commercial grade in-line valve replaces Rain Bird and other irrigation valves installed below ground with 3/4 in. female threaded inlet and outlet. It can be used with any 24 volt AC irrigation timer. Its unique reverse-flow design helps prevent flooding in the event of internal diaphragm failure, keeping the valve closed and saving water. Equipped with the additional advantage of adjustable flow control, this model helps prevent wasteful misting when water pressure is too high. A top mounted, easy turn flow control knob allows you to optimize flow to the zone, permitting sprinklers to water at their most efficient rate for more uniform coverage. This valve can be applied with all types of watering devices including Rain Bird spray heads (1800, 600), and rotors (22SA, 32SA, 42SA+, 52SA, LG3 and AG5) as well as Drip zones when properly installed together with a pressure regulator and filter. Use in-line valves in locations where the use of a pressure vacuum breaker (PVB) or a double-check valve is required by code to protect against backflow. Check your local codes to determine what type of valve is required. After installation and before startup, always the flush system of dirt and debris manually using the valve’s external bleed screw.

• Reliable, non-clogging design

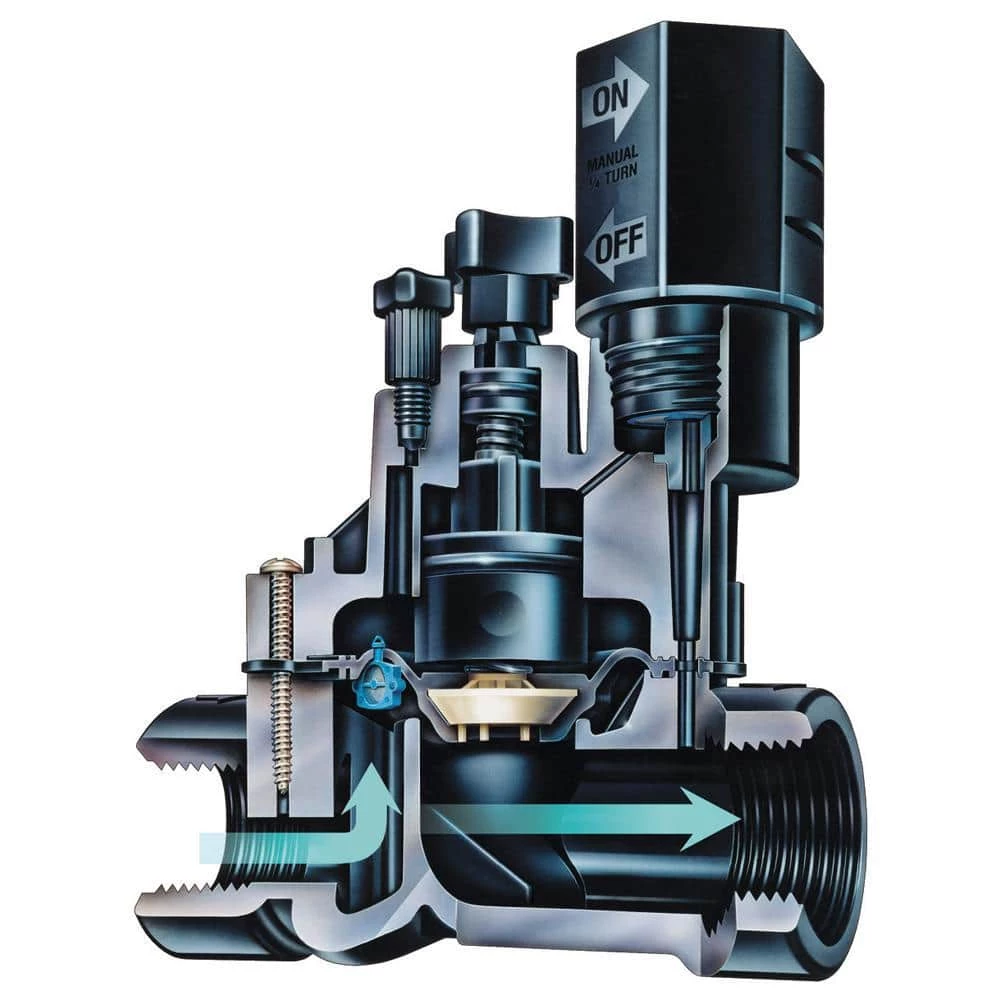

• Reverse Flow design reduces stress on diaphragm for dependable operation
• In-line design minimizes pressure loss of dirt and debris during installation and system start-up
• 24 VAC, 50/60 Hz automatic operation or manual activation with bleed screw
• Works with any standard sprinkler timer

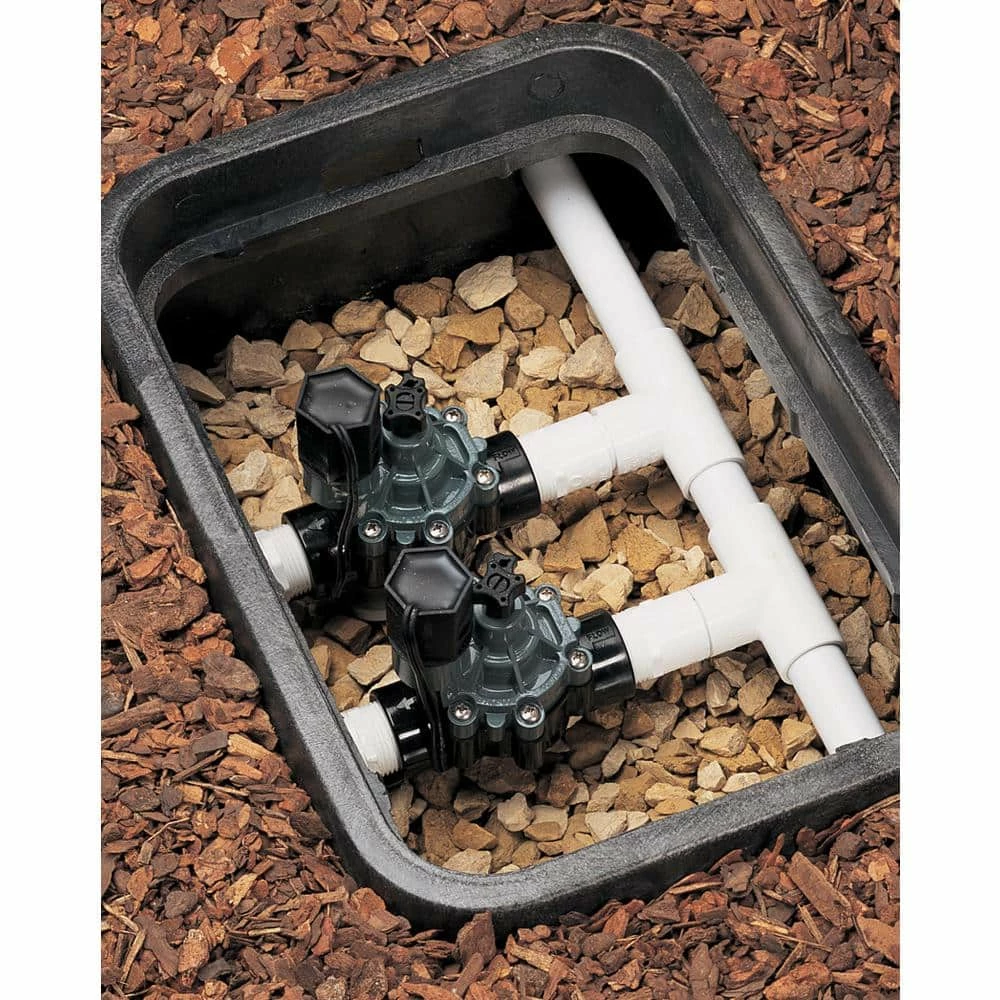

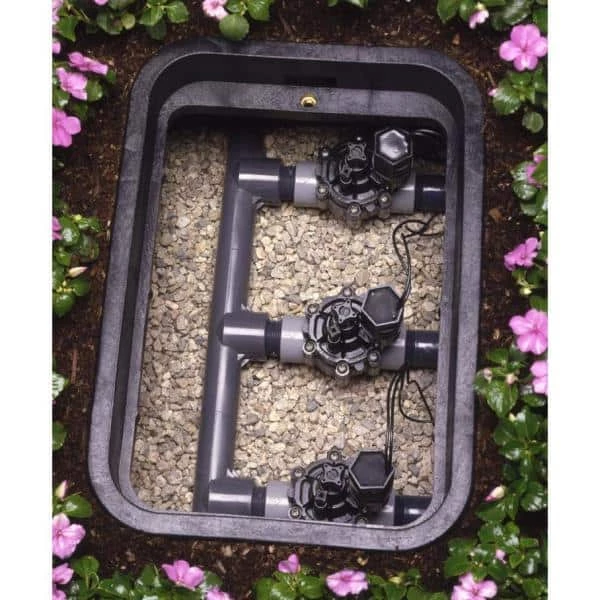

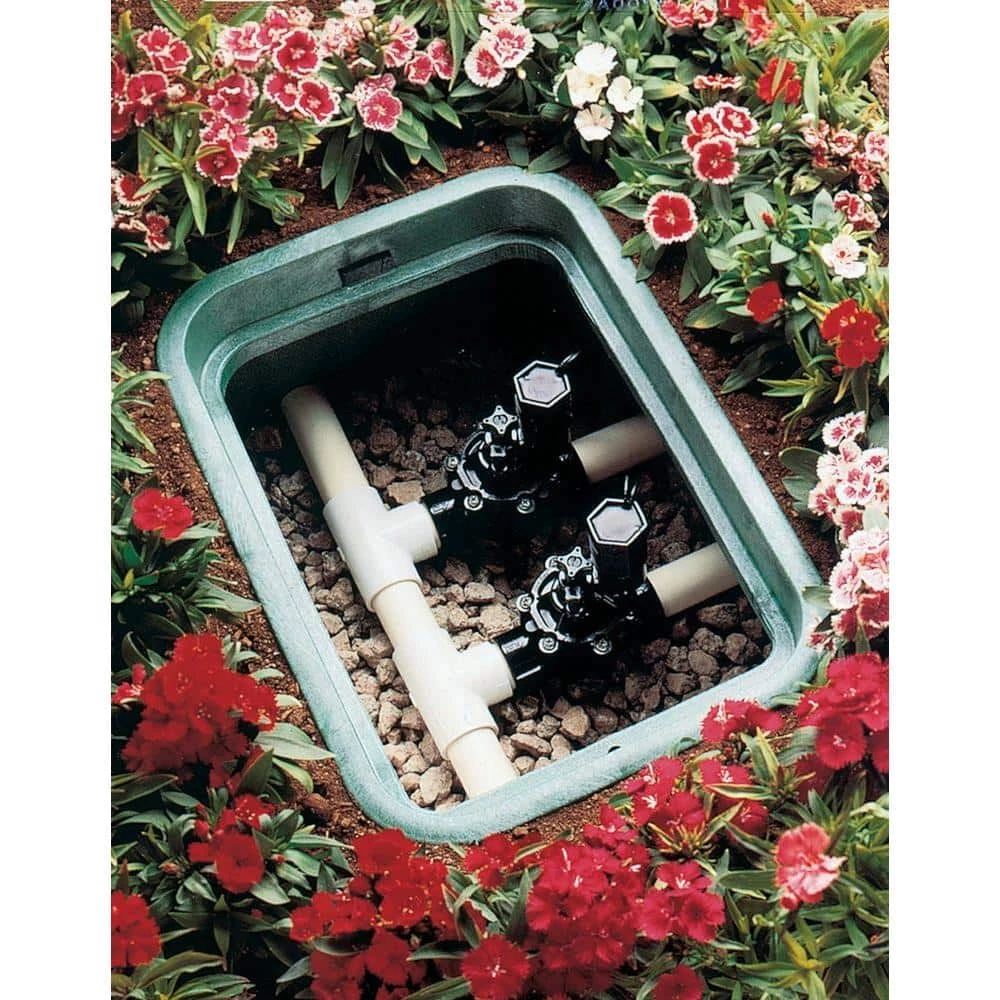

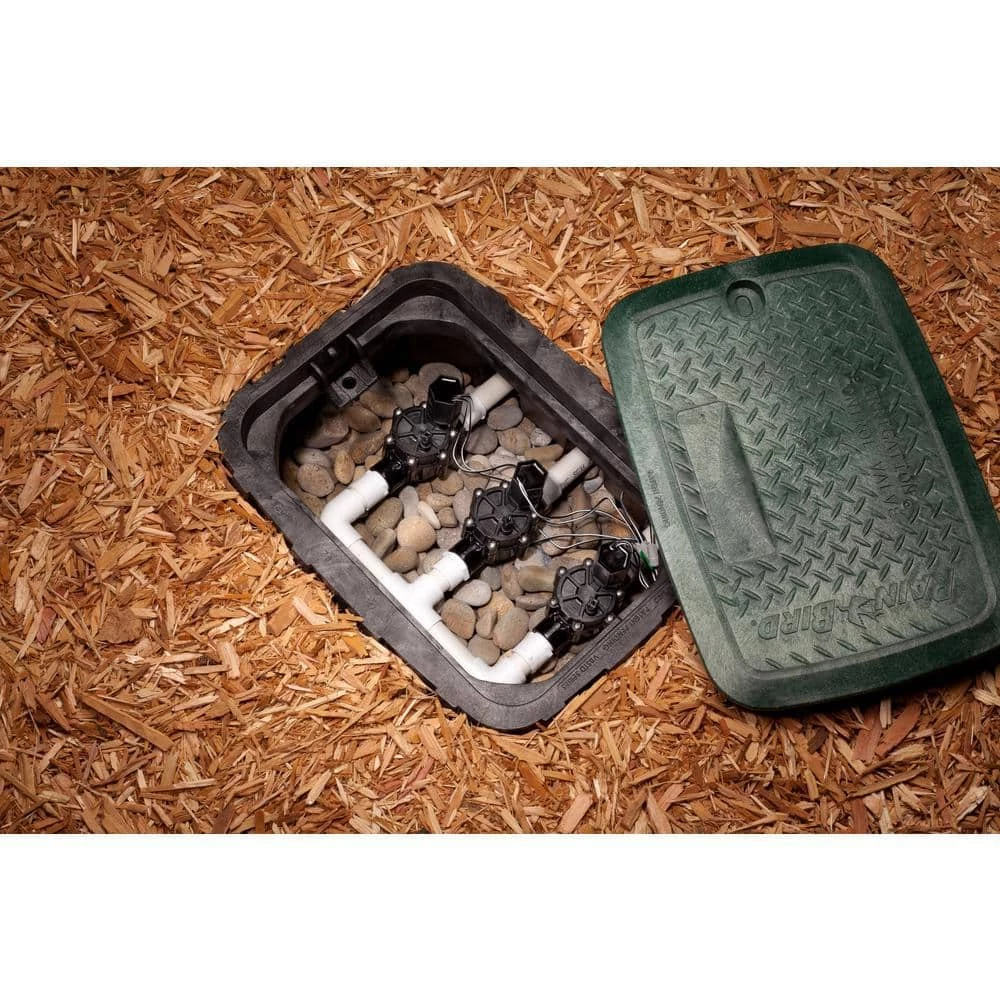

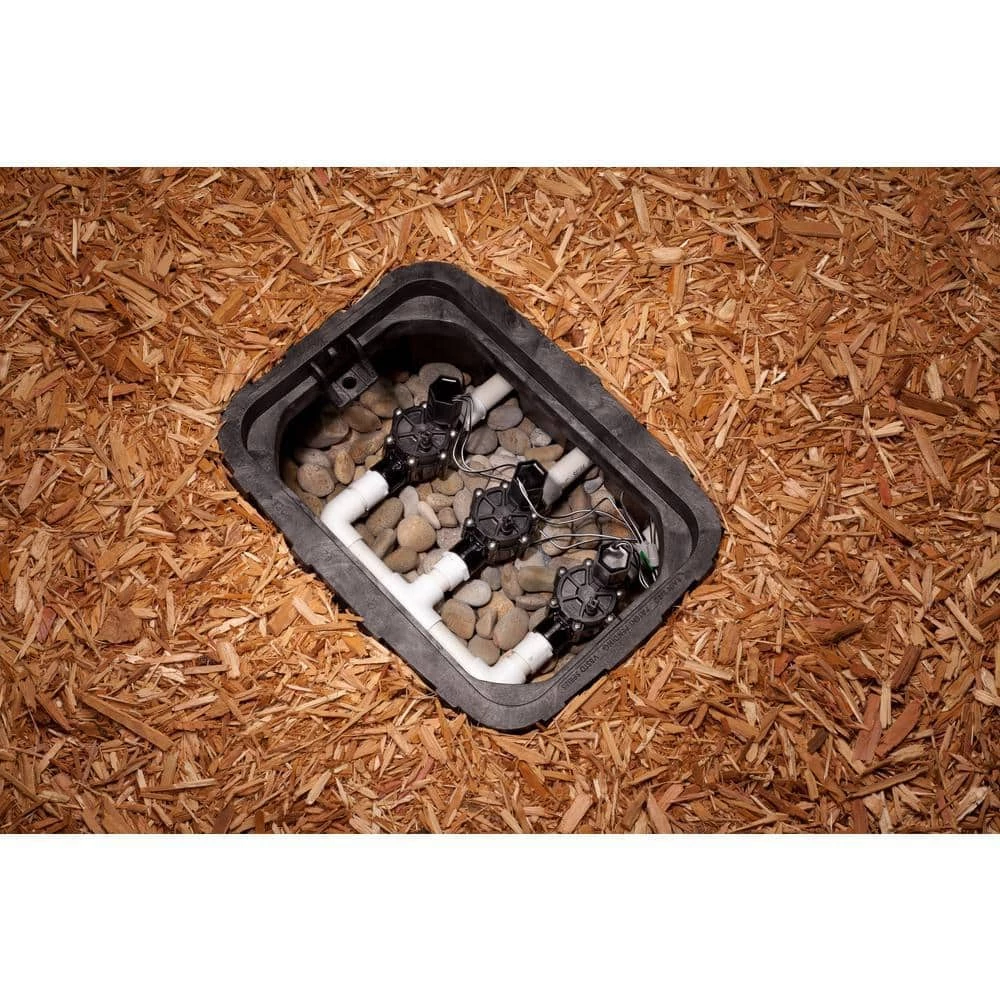

• Designed for below-ground installation, out of sight and away from playful hands
• Energy efficient, low power encapsulated solenoid with captured plunger for long lasting dependability
• 3/4 in. female threaded inlet and outlet (use 3/4 in. MPT threaded pipe adapters with Teflon tape)
• Easy-to-turn, pressure assisted flow control mechanism
• Heavy duty construction
