Original price was: $8.47.$5.17Current price is: $5.17.
9-ports with individual levers for on, off or regulated flow
½ in. female pipe thread for standard riser mounting
Full adjustability of each port allows custom flow from 0-20 GPH
- The quality solution for all your needs.
- Peace of Mind with Every Purchase
- 7 Days of Hassle-Free Returns
- Unbeatable Quality Guaranteed

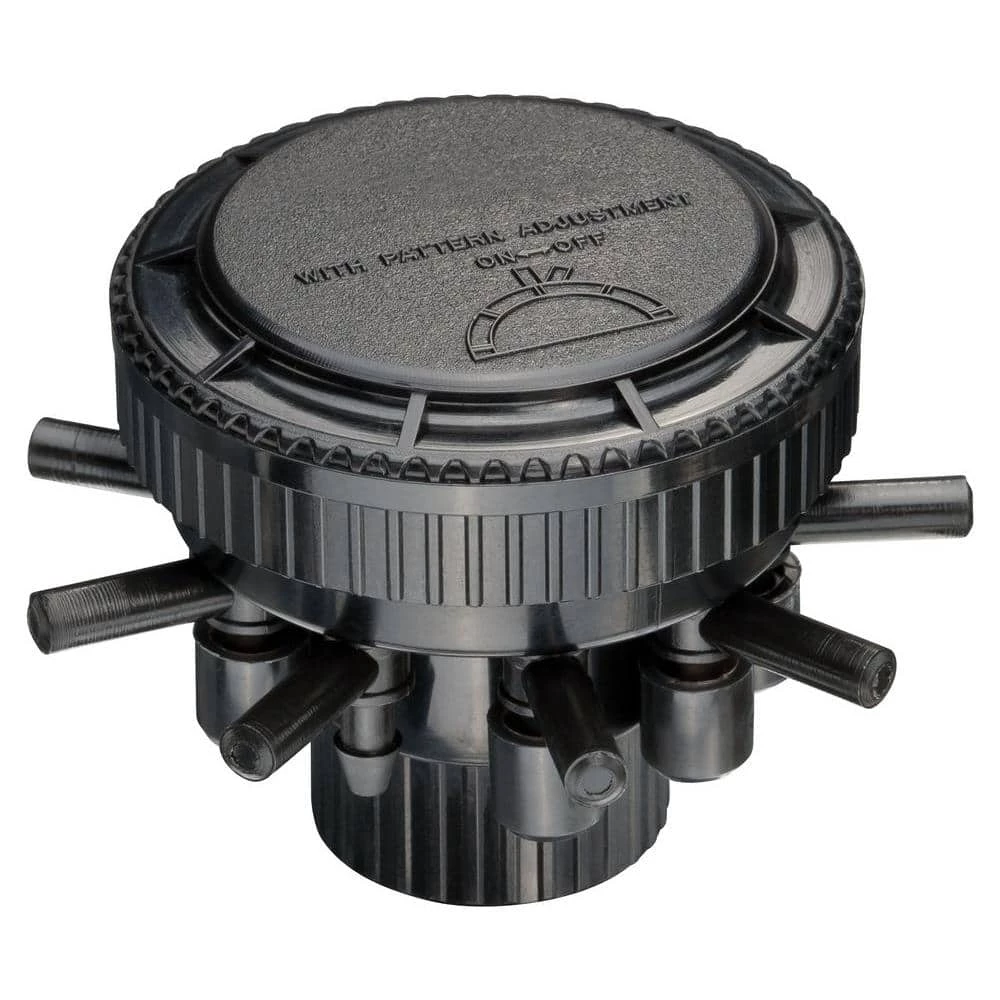

Providing full adjustability of each port, this drip irrigation manifold will allow you to customize flow from 0 to 20 GPH for individual plants, improving root development and reducing plant stress. The manifold has 9 ports which accept standard ¼ in. drip tubing. Each port adjusts with a side lever to increase, decrease or shut off flow. The manifold mounts to a standard ½” MPT riser.
- 9-ports with individual levers for on, off or regulated flow
- Use with ¼” drip irrigation tubing
- 0-20 GPH per port
- Operating pressure: 25 psi
- ½ in. female pipe thread for standard riser mounting
- Connects up to nine 1/4″ Drip irrigation tubes to a 1/2″ riser
- Provides for customization of flow rates from 0 to 20 gallons per hour
- 1/2″ female pipe thread (FPT) inlet threads onto a 1/2″ male pipe threaded (MPT) riser
- Constructed of highly durable UV and chemical-resistant materials to assure long life
- Use to convert an existing underground sprinkler to Drip using Rain Bird RCKIT-1PS-1PS (sold separately)
| Color Family | Blacks |
|---|---|
| Pressure Rating | 15-50 |
| Product Width (in.) | 4 |
| Product Length (in.) | 4 in |
| Product Height (in.) | 6 |
| Product Depth (in.) | 4 |
| Outer Diameter (in.) | .25 |
| Inner Diameter (in.) | .5 |
| Manufacturer Warranty | If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund. |
| Valve Type | Reduce Pressure Zone |
| Returnable | 90-Day |
| Product Weight (lb.) | 2.8 |
| Package Quantity | 1 |
| Compatible Pipe Material | ABS |
| Pack Size | 1 |
| Operation | Automatic |
| Number of Ports | 9 |
| Maximum Working Temperature (F) | 115 |
| Maximum Pressure (psi) | 50 |
| Maximum Gallons Per Minute | 1 |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Irrigation System Component | Manifold |
| Installation | Above Ground |
| Connection | Female Pipe Thread |
| Tubing Size | 1/4" |
