Rain Bird Part Circle Rotor

Rain Bird CP5004PC Professional Grade Rotor with Pro Nozzle Set, 40 to 360 Pattern, 25 ft. to 50 Spray Distance. With its intuitive adjustments and impressive coverage uniformity, the Rain Bird CP5004PC gear drive rotor waters all areas of your lawn evenly; reducing water use and providing greener, healthier grass. The many safeguards and trouble-free features built into our closed-case rotor sprinkler make it the perfect choice for any home landscape. Easily adjusts at the top with a flat blade screwdriver from 40 to 360 part-circle arc rotation, and reversing full-circle rotation to ensure you’re watering only things that grow, not the house, sidewalk, or driveway. For installation convenience arc rotation is factory preset at 180. Includes a Pro Nozzle Tree set of (12) superior performing Rain Curtain nozzles to ensure even precipitation rates and allow low trajectory watering. Nozzles include: (4) 10 low angle trajectory, and (8) 25 standard angle Rain Curtain Nozzles to provide adjustable 25 ft. to 50 spray distances. Rain Bird’s patented industry-leading Rain Curtain nozzle technology delivers a uniform, rotating curtain of large water droplets that fall exactly where you want and resist windblown overspray. The nozzle’s “micro ramps” also direct a portion of the spray close to the head eliminating dry brown spots common with other rotor brands. The nozzle’s superior coverage uniformity helps reduce watering time saving money on water bills.

• 26 – 38 ft. watering distance with pre-installed 3.0 GPM nozzle
• Up to 50 ft. watering distance by changing nozzles (supplied)
• 40 degrees – 360 degrees arc as well as reversing full circle rotation

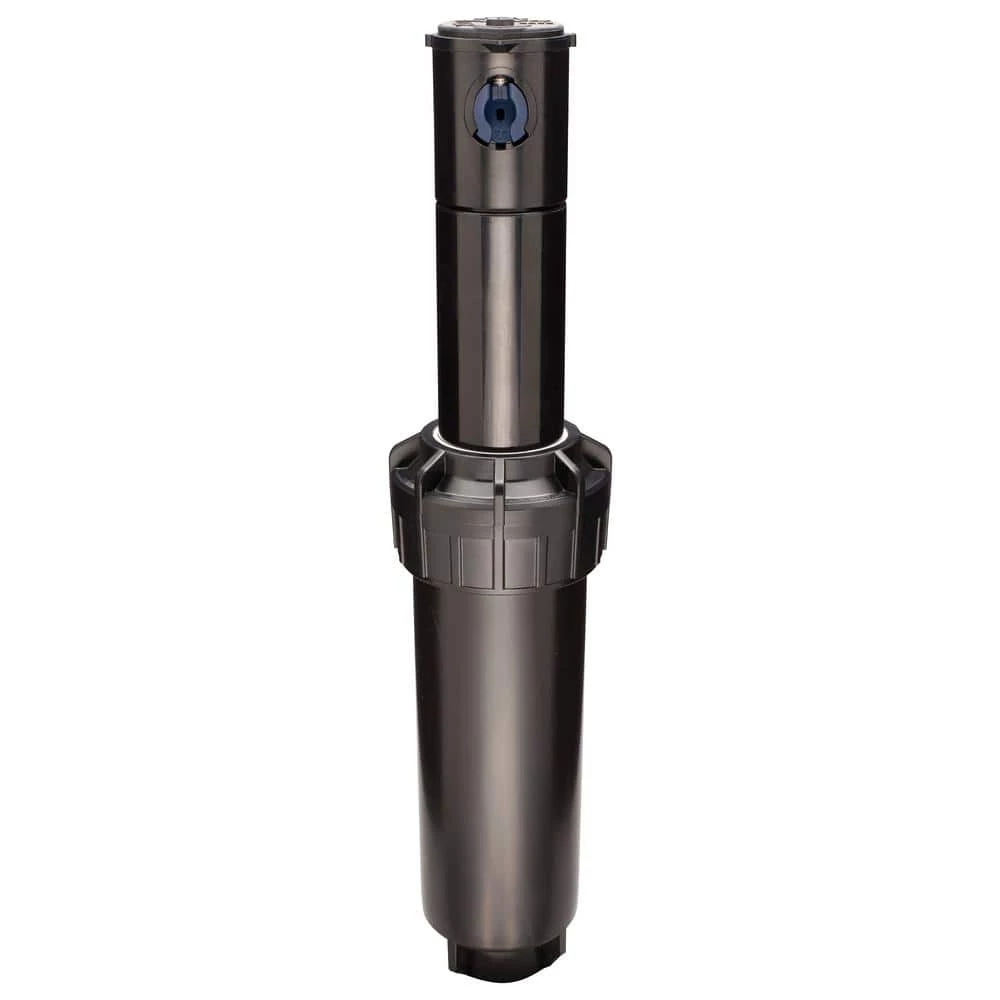

• 4 in. pop-up clears taller grass
• Easy to use Pro Grade gear-drive rotor offering value and convenience for residential applications

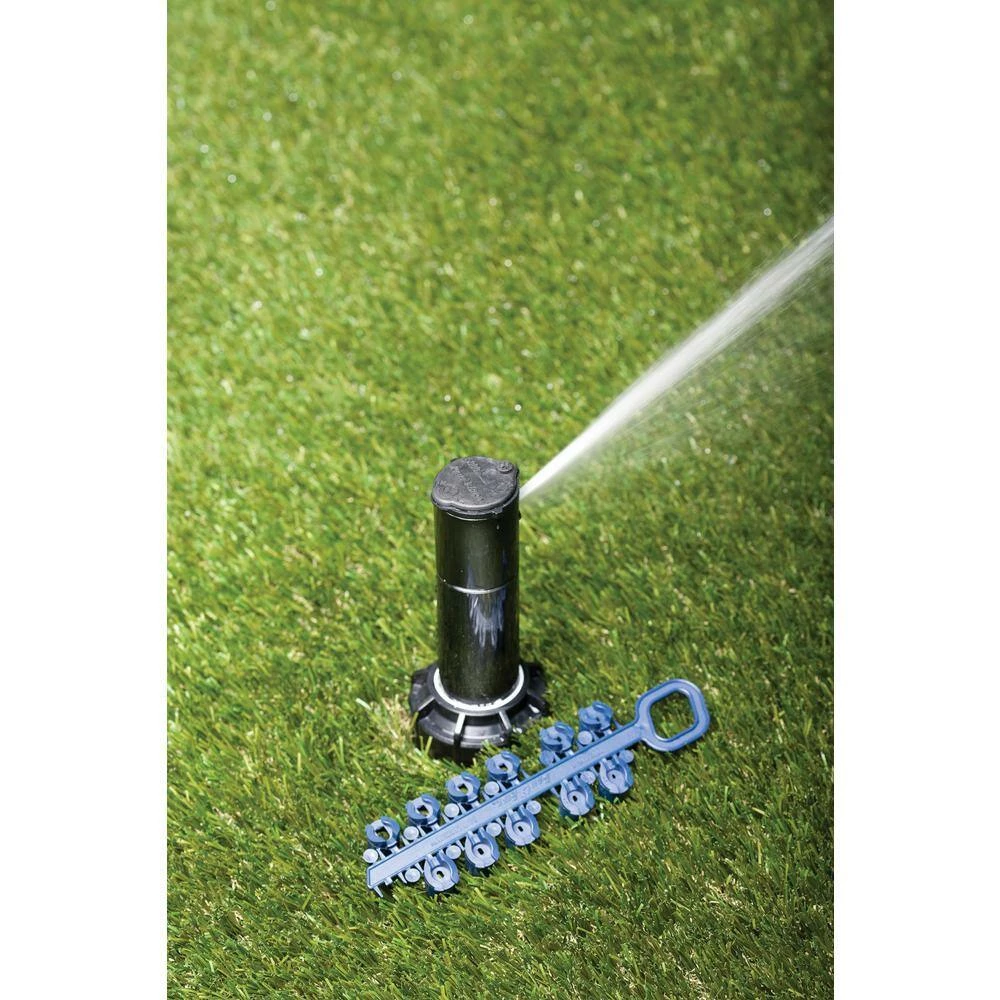

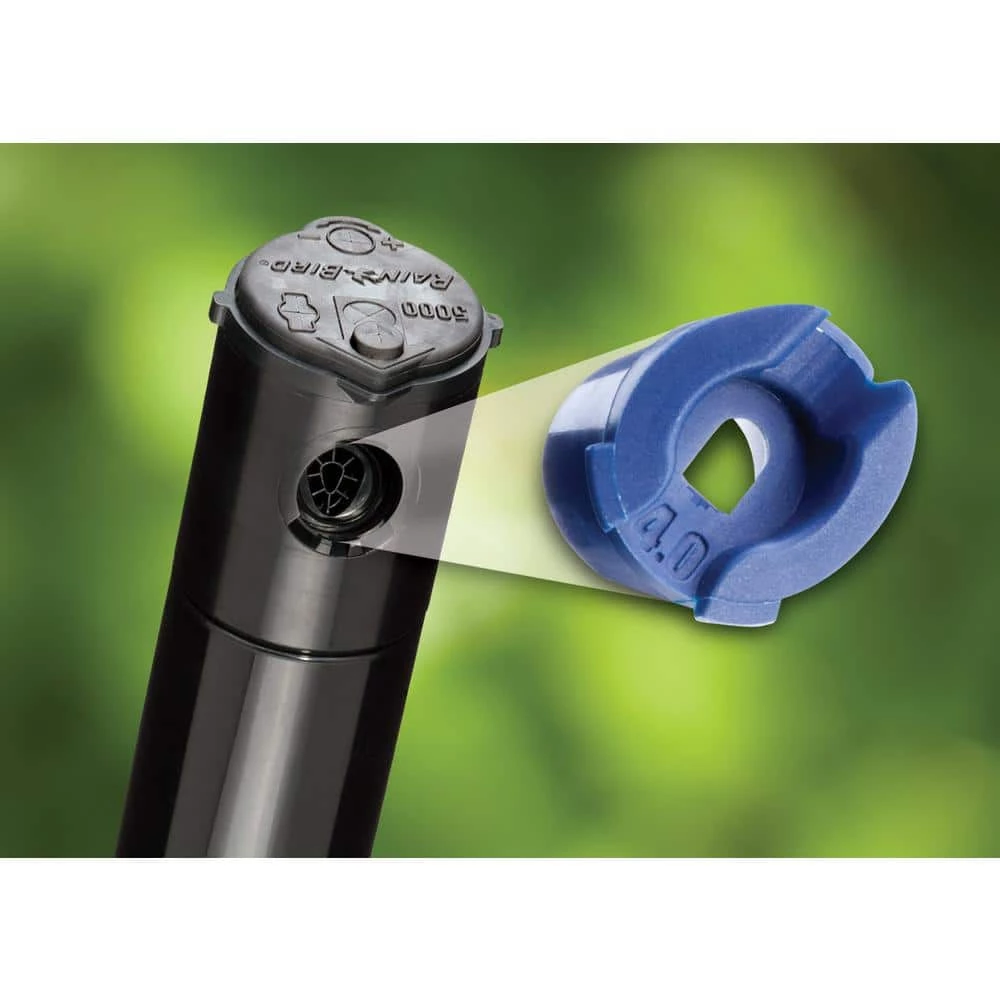

• Includes set of (12) Pro Nozzles to ensure even precipitation rates and low trajectory watering

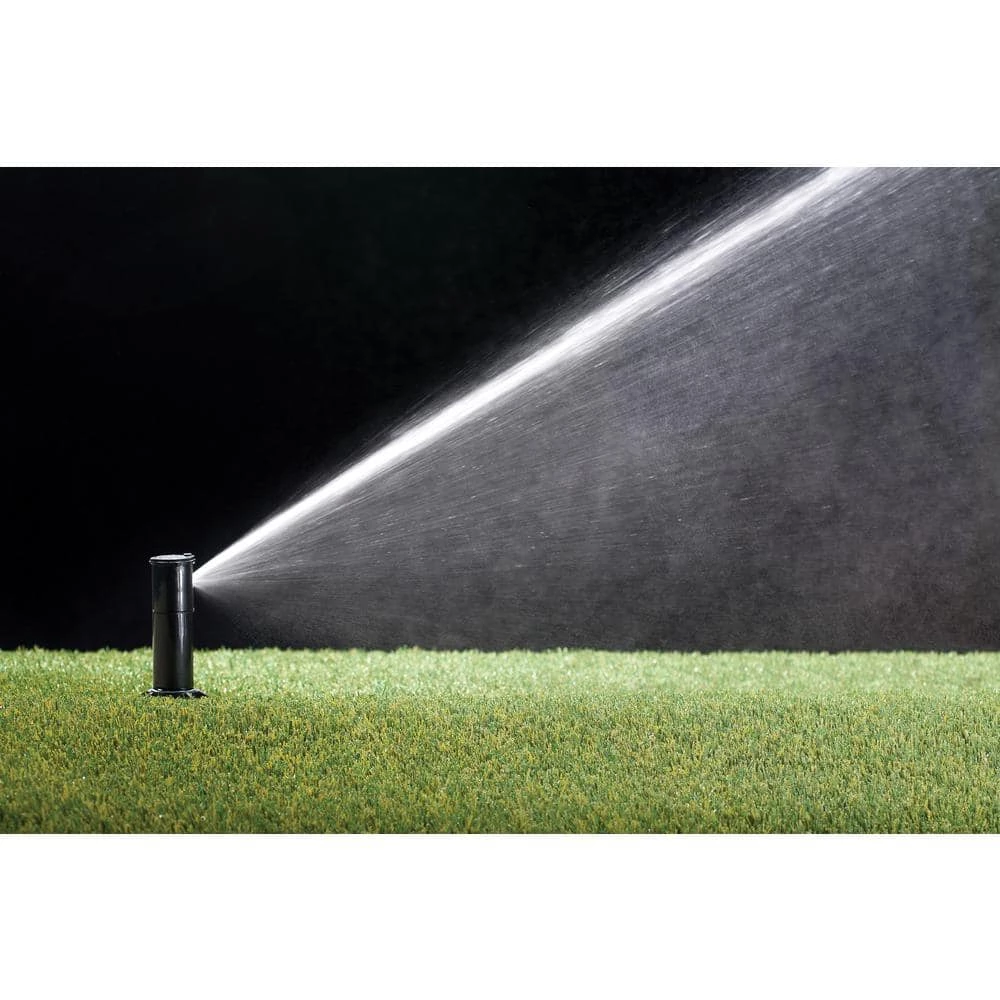

• Superior Rain Curtain technology produces large water droplets that provide even distribution and resist wasteful windblown overspray
• Gentle close-in watering prevents dry spots around the rotor and seed washout; allows healthy turf growth with no matting or bending
• 40° to 360° Part-Circle arc rotation and reversing Full-Circle 360° rotation in one
• Easily adjustable with flat head screwdriver from 25′ to 50 spray distance, 3/4″ NPT female bottom threaded inlet
• Operating pressure: 25 – 65 psi
• Flow rate: 0.73 to 9.6 gpm
